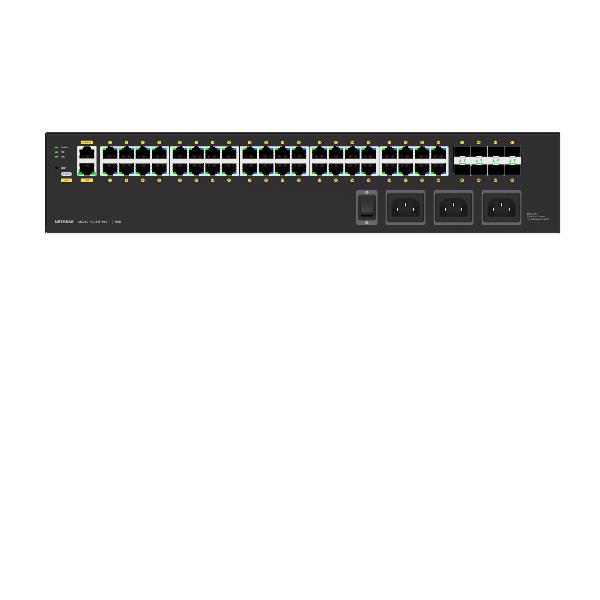

POE++ MANAGED SWITCH 40X1G
• 40-port 10/100/1000BASE-T (RJ45) Ultra90 PoE++ with 2,880W PoE budget
• 8-port 1000/10GBASE-X (SFP+)
• Compatible 802.3af (15.4W), 802.3at (30W), 802.3bt (60, 75 and 90W)
• 3 internal, fixed PSUs (C14 inlets) with embedded RPS/EPS function
• When one PSU is used, PoE budget is 720W
• When two PSU are used, PoE budget is 1,650W
• When three PSU are used, PoE budget is 2,880W
• 240 Gbps non-blocking fabric across 48 ports
• Out-of-band 1G Ethernet management port
• USB-C and RJ45 RS232 console ports and USB-A storage port
• Front black display panel and all ports in the back
• Possible reversed mounting with ports in the front
• Rack-mounting standard brackets
• Longer brackets for recessed mounting (2 inches / 5 cm)
• Threaded hole in front (1xM10) for clamps
• Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
• Selectable fan modes for quiet or cool operation
• Dimensions (WxDxH): 440 x 86.4 x 350 mm (2U)
• Weight: 10.28Kg (22.72lb)
BRAND: NETGEAR
Specifiche
| GENERALE | |
|---|---|
| Produttore | NETGEAR |
| Tipo di prodotto | Switch |
| Altri cavi inclusi | Package contents • m4250-40g8xf-poe++ (gsm4248ux) • power cord(s) • console USB type-c and rj45-db9 cables • rackmounting standard brackets • longer brackets for recessed mounting • rubber footpads for tabletop installation • installation guide |
| Attacco su barra DIN | No |
| Dichiarazione di conformita | CE |
| Gestione | Managed (cli) |
| Industriale | No |
| Kit e accessori vari | Package contents • m4250-40g8xf-poe++ (gsm4248ux) • power cord(s) • console USB type-c and rj45-db9 cables • rackmounting standard brackets • longer brackets for recessed mounting • rubber footpads for tabletop installation • installation guide |
| Management ridondata | No |
| Modalità stacking | No |
| Quality of service qos | Sì |
| Rack mountable | Sì |
| Software | Package contents • m4250-40g8xf-poe++ (gsm4248ux) • power cord(s) • console USB type-c and rj45-db9 cables • rackmounting standard brackets • longer brackets for recessed mounting • rubber footpads for tabletop installation • installation guide |
| Stackable | No |
| Supporto routing layer | Sì |
| Unità rack | 2 |
| Connettività e porte | |
|---|---|
| POE budget | 720 W |
| Porta console | Sì |
| Porte fruibili contemporaneamente LAN uplink | 48 |
| Porte LAN | 40 |
| Porte POE | 40 |
| Porte uplink | 8 |
| Power over ethernet POE | Sì |
| Standard POE supportati | 15,4 W, 30 W |
| Tipo e velocità porte LAN | RJ-45 10/100/1000 |
| Tipo e velocità porte uplink | SFP/SFP+ |
| Vlan supportate | 4000 |
| Alimentazione e batteria | |
|---|---|
| Alimentatore incluso | Sì |
| Alimentazione ridondata | No |
| Consumo energetico | 912 W |
| Power supply | AC |
| Tipologia di alimentazione ridondata | Nessuna ridondanza di alimentazione |
| Dimensioni e peso | |
|---|---|
| Altezza | 87 mm |
| Larghezza | 440 mm |
| Peso | 10280 g |
| Profondità | 350 mm |
| Confezione | |
|---|---|
| Manuali | Package contents • m4250-40g8xf-poe++ (gsm4248ux) • power cord(s) • console USB type-c and rj45-db9 cables • rackmounting standard brackets • longer brackets for recessed mounting • rubber footpads for tabletop installation • installation guide |
