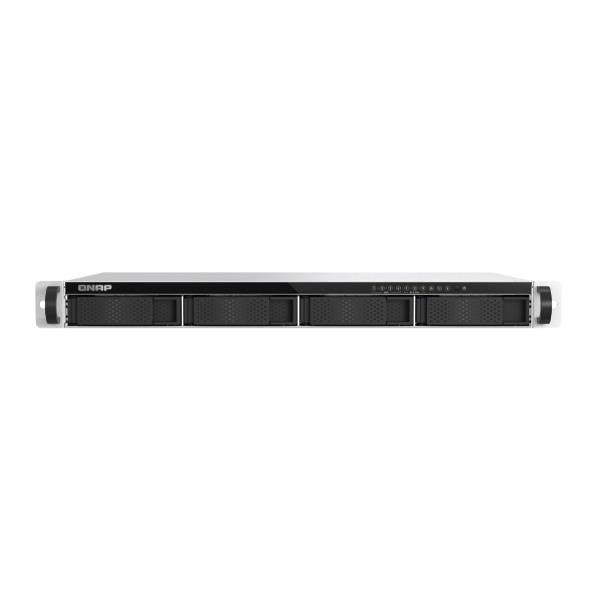

TS-H765EU-8G
TS-h765eU
Compact 1U short-depth rackmount NAS, with E1.S/M.2 PCIe NVMe slots and 10GbE expandability
The 1U short-depth rackmount TS-h765eU is designed for space-constrained environments, offering an efficient and reliable storage solution for various needs. Adopting the latest Intel® Atom x7000C Series processor, the TS-h765eU comes with four 3.5-inch drive bays and three E1.S / M.2 PCIe NVMe slots for exceptional expandability, making it an ideal NAS for high performance and multitasking demands. The TS-h765eU runs the ZFS-based QuTS hero operating system that ensures data integrity and WORM protection for data immutability.
Space-saving
The 1U short depth of only 292.1mm (12 inches) is suited for small media cabinets or wall-mount network racks.
The short rail kit Rail-S01 is recommended (optional purchase).
DDR5 RAM
Built-in high-performance and low power consumption DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB RAM can be installed.
Expand to two 10GbE ports
Flexibly upgrade to high-speed 10GbE by installing two E1.S to 10GbE network modules (QXG-ES10G1T).
Dual 2.5GbE as standard
Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
Easy storage expansion via USB
Connect a QNAP's short-depth USB JBOD TR-004U to the TS-h765eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5).
Long-term supply
The TS-h765eU will be available and supported by QNAP for an extended period, up to 2031.
BRAND: QNAP
Specifiche
| GENERALE | |
|---|---|
| Produttore | QNAP |
| Tipo di prodotto | NAS |
| Bus per hard disk | SATA |
| Colore | Nero |
| Dichiarazione di conformita | CE |
| Formato chassis | Rack |
| LED | Power/status, LAN, USB, hdd1-4, e1.s/PCIE SSD 1~3 |
| Numero enclosures supportati | Drive bay 4 x 3.5-inch SATA 6 GB/s, 3 GB/s 3 x e1.s up to 15mm (pre-install adapter to support M.2 2280 for each slots) drive compatibility 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives e1.s NVME PCIE ssds M.2 2280 NVME PCIE ssds |
| Numero massimo utenti FTP | 1024 |
| Posizionamento | Professional |
| Supporto raid | Sì |
| Tipo file systems | No especifica |
| Processore e memoria | |
|---|---|
| Memoria ddram | 8000 MB |
| Memoria flash | 8000 MB |
| RAID 5 | Sì |
| RAID 6 | Sì |
| Tipo CPU | Intel |
| Archiviazione | |
|---|---|
| Dimensione degli slot dei dischi | 2.5''/3.5'' |
| Livelli RAID | JBOD, RAID 0 (striping), RAID 1 (mirroring) |
| Numero bay totali | 7 |
| Supporto enclosures | Sì |
| Unità di memoria | SATA |
| Connettività e porte | |
|---|---|
| Conformita LAN | 2 porte 2.5 gigabit ethernet port (2.5g/1g/100m/10m) |
| Connettori porte LAN | Gigabit ethernet |
| Numero porte LAN | 2 |
| Porta console | No |
| Porte USB | 2 |
| Velocità LAN | 100/1000/2500 |
| Rete e wireless | |
|---|---|
| Estensioni wireless | No |
| Protocolli | AFP, CIFS, FTP, FTPS, HTTP, HTTPS, iSCSI, NFS, rsync, SMB |
| Supporto ip | Ipv4/ipv6 |
| Wireless security | No |
| Alimentazione e batteria | |
|---|---|
| Alimentatore ridondato | No |
| Power supply | AC |
| Power supply frequenza | 50/60 |
| Power supply potenza assorbita | 150 W |
| Power supply tensione | 100/240 |
| Dimensioni e peso | |
|---|---|
| Altezza massima | 43 mm |
| Larghezza massima | 430 mm |
| Peso | 4510 g |
| Profondità massima | 292,1 mm |
